Specifications¡@

Model

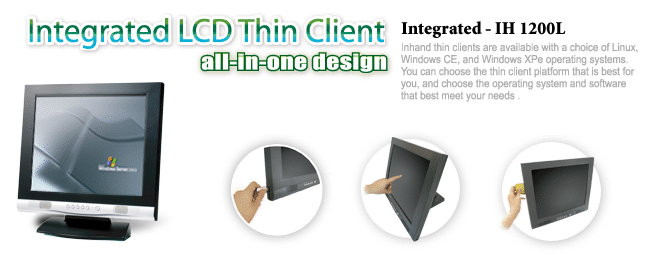

¡DIH1200L Integrated LCD Thin Client all-in-one design

CPU

¡DVIA Eden V4 1GHz CPU (up to 1.5GHz), fanless design

Audio

¡DAC97 CODEC and internal speaker (2W)

Display

¡D17''TFT LCD Monitor 1280 x 1024 (max.)
¡DTouch Screen (optional)

Memory ¡DDDR-DRAM expandable memory up to 1GB (SO-DIMM-200pin)
¡DFlash Memory -CF Card / DOM expandable memory up to 8GB

Networking

¡D10/100Mbps Fast Ethernet, Realtek chipse
¡DWake on LAN, Boot from LAN (PXE)
¡D Wireless LAN, mini PCI or USB (optional)

I/O Interface

¡D2 x COM port ( 1 internal, 1 external)
¡D6 x USB 2.0 port ( 2 internal, 4 external)
¡D1 x DB25 printer port
¡D1 x Microphone and 1 x Speaker
¡D2 x PS/2 connector for K/B & Mouse
¡D1 x RJ-45 port for 10/100Mbps Fast Ethernet
¡D1 x 50-pin CF socket
¡D1 x 44-pin DOM socket (2mm)
¡D1 x 40-pin DOM socket (2.54mm)
¡D1 x mini PCI slot
¡D1 x SATA (optional)
¡D1 x Smart card reader (optional)


Operating System

¡DMicrosoft Windows CE
¡D Microsoft Windows XP Embedded, XP Professional, XP Home Edition
¡D Linux

Protocol

¡DTCP/IP with DNS, DHCP and PPPoE
¡DMicrosoft RDP / Citrix ICA

Power

¡D12V / 5A Power Adapter , AC input 100~240V

Dimension

¡D510(L) x 160 (W) x 580(H) mm

Weight ¡D8.00 Kgs

EMC & Safety Certificate

¡DCE, FCC

Optional

¡DInternal 2.5¡¨ Hard Disk (IDE)
¡DSmart Card Reader (COM or USB)
¡DWireless LAN (mini PCI or USB)
¡DTouch Screen
¡DUSB port
