Specifications

Model

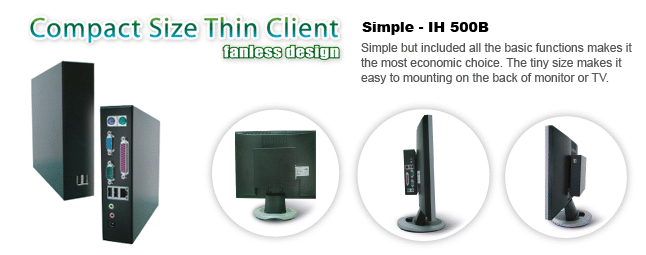

D IH500B Compact Size Thin Client

CPU

D VIA 500MHz CPU (up to 1.5GHz), fanless design

VGA Output

D AGP 8X Rev. 2.0 Compliant
D Resolution up to 1920*1440, true colors
D Shared System memory Area up to 64MB
D One VGA DB-15 video port

Memory

D DDR-DRAM expandable memory up to 1GB (DDR-socket-184pin)
D Flash Memory V CF Card/DOM expandable memory up to 8GB

Networking

D 10/100Mbps Fast Ethernet, Realtek chipset
D Wake on LAN, Boot from LAN(PXE)
D Wireless LAN

I/O ports

D 1 x COM port (1 external)
D 6 x USB 2.0 port (2 front, 2 rear, 2 internal)
D 1 x DB25 printer port
D 1 x Microphone, , 1 x Line out
D 2 x PS/2 connector for K/B & Mouse
D 1 x RJ-45 port for 10/100Mbps Fast Ethernet
D 1 x 40-pin DOM socket (2.54mm)

Operating System

D Microsoft Windows CE
D Microsoft Windows XP Embedded, XP Professional, XP Home Edition
D Linux

Protocol

D TCP/IP with DNS, DHCP and PPPoE
D Microsoft RDP / Citrix ICA

Power Supply

D Power Adapter@12V/2A , AC input 100~240v

Dimension

D 180(L) x 190(W) x 40(H) mm
D 1.2Kgs

EMC & Safety Certificate

DCE, FCC

Optional

DWireless LAN
DTV output
